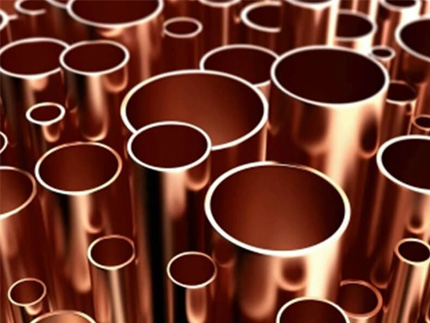

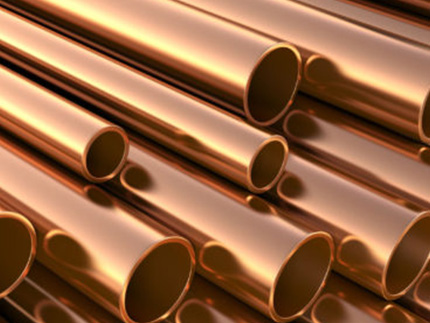

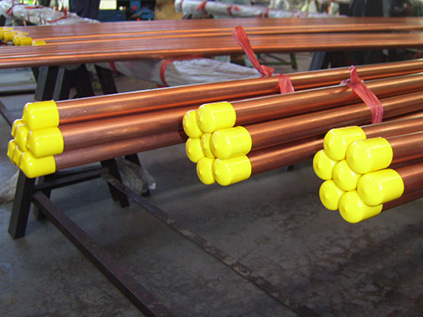

Straight Length Tubes are widely used to transport refrigerant gas, liquids in refrigeration, air conditioning units and heat exchangers, water service, plumbing etc.
MTT straight length tubes are made of C12200 (Cu-DHP), in accordance with both ASTM B-280, EN 12735-1, AS 1571 and JIS H3300 etc.
MTT offers straight length in hard drawn temper.
Size Available
ASTM B - 280
|
Dimensions O.D. x thickness
|
Length
|
|
1/4" (6.35mm) x 0.030"
|
3 m, 5 m or 5.8 m
|
|
5/16" (7.92mm) x 0.032"
|
|
3/8" (9.52mm) x 0.032"
|
|
1/2" (12.7mm) x 0.032"
|
|
5/8" (15.9mm) x 0.035"
|
|
3/4" (19.1mm) x 0.035"
|
|
3/4" (19.1mm) x 0.042"
|
|
7/8" (22.3mm) x 0.045"
|
|
1-1/8" (28.6mm) x 0.050"
|
5 m, 5.8 m
|
|
1-3/8" (34.9mm) x 0.055"
|
|
1-5/8" (41.3mm) x 0.060"
|
|
2-1/8" (54.0mm) x 0.070"
|
|
2-5/8" (66.7mm) x 0.080"
|
|
3-1/8" (79.4mm) x 0.090"
|
|
3-5/8" (92.1mm) x 0.100"
|
|
4-1/8" (105mm) x 0.110"
|
EN 12735-1
|
Dimensions O.D. x thickness
|
Length
|
|
6 mm x 1 mm
|
3 m, 5 mor 5.8 m
|
|
8 mm x 1 mm
|
|
10 mm x 1 mm
|
|
12 mm x 1 mm
|
|
15 mm x 1 mm
|
|
16 mm x 1 mm
|
|
18 mm x 1 mm
|
|
22 mm x 1 mm
|
|
28 mm x 1.5 mm
|
5 m, 5.8 m
|
|
35 mm x 1.5 mm
|
|
42 mm x 1.5 mm
|
|
54 mm x 2 mm
|
|
64 mm x 2 mm
|
|
76.1 mm x 2 mm
|
|
88.9 mm x 2 mm
|
|
108 mm x 2.5 mm
|
