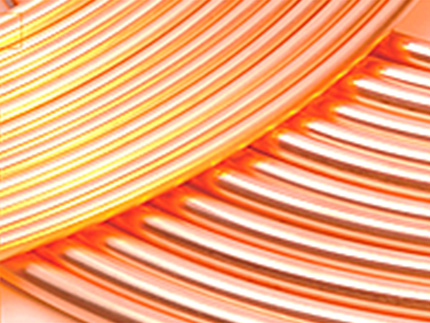

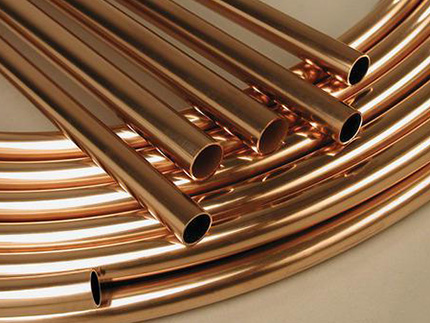

Pancake Coil Tubes are used mainly to transport refrigerant gas, liquids in refrigeration and air conditioning units as well as heat exchangers.
MTT copper tubes are made of C12200 (Cu-DHP) and in accordance with ASTM B-280 standard. Or other standard which clients designated such as JIS H3300, BS EN etc.
The tubes are supplied as pancake coils in soft annealed temper.
Size Available
ASTM B - 280
|
Dimensions O.D. x thickness
|
Length
|
|
1/4" (6.35mm) x 0.030"
|
15 m, 30 m or 50 m
|
|
5/16" (7.92mm) x 0.032"
|
|
3/8" (9.52mm) x 0.032"
|
|
1/2" (12.7mm) x 0.032"
|
|
5/8" (15.9mm) x 0.035"
|
|
3/4" (19.1mm) x 0.035"
|
|
3/4" (19.1mm) x 0.042"
|
|
7/8" (22.3mm) x 0.045"
|
EN 12735-1
|
Dimensions O.D. x thickness
|
Length
|
|
6 mm x 1 mm
|
15 m, 30 m or 50 m
|
|
8 mm x 1 mm
|
|
10 mm x 1 mm
|
|
12 mm x 1 mm
|
|
15 mm x 1 mm
|
|
16 mm x 1 mm
|
|
18 mm x 1 mm
|
|
22 mm x 1 mm
|
证书 SHIN1904021090ML - 9.52
证书 SHIN1904021091ML - 12.7
证书 SHIN1904021092ML - 15.88
证书 SHIN1904021093ML - 19.05
证书 SHIN1904021089ML - 6.35
